The PipeTest example exercises the FrontPanel pipe endpoints by testing and verifying bulk transfers. Thie example allows you to:

• Perform bandwidth tests at full rate with various block and length settings
• Perform bandwidth tests using block throttling to restrict data flow
• Perform pattern tests with optional verification and error injection
• Perform pipe transfer stress tests
• Perform basic statistical analysis of transfers

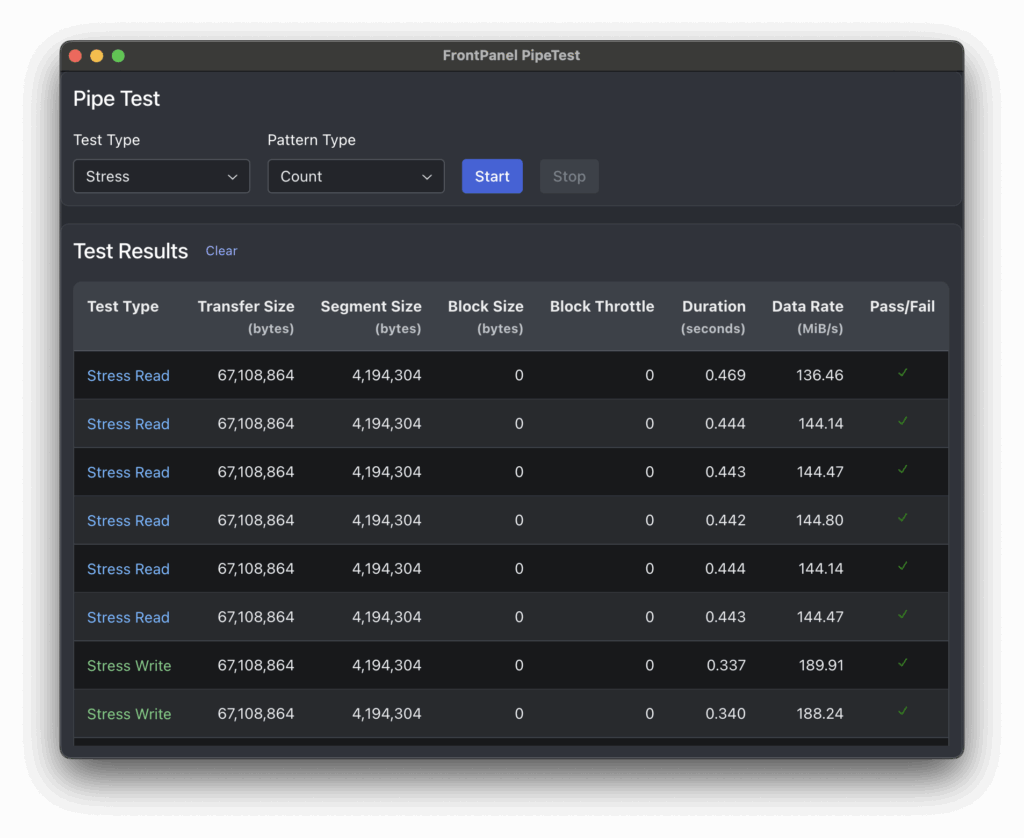

The FrontPanel Platform interface for this example is shown below

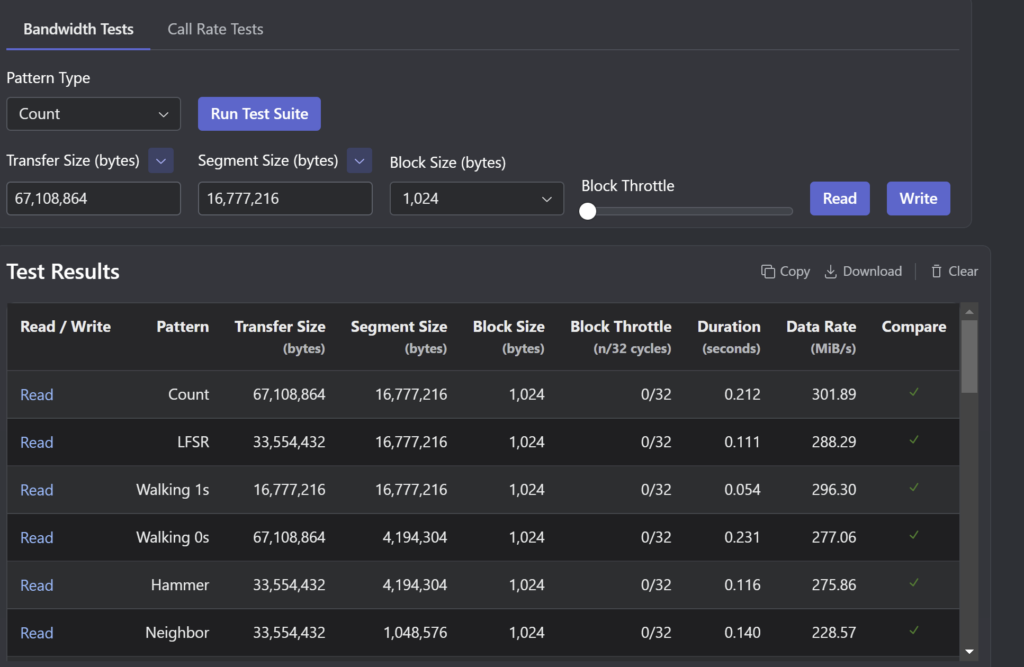

An app version of the PipeTest example is provided as a FrontPanel Platform app, written in JS+HTML+CSS. This app is included in the FrontPanel Platform App Launcher and provides a graphical interface to (mostly) the same functionality.

1. Download the pre-built example bitfiles corresponding to your FPGA module from our Pins Downloads.
2. Locate PipeTest.exe (and its source code):
   • For FrontPanel Classic, these are in the Samples directory installed with the FrontPanel SDK.
   • For FrontPanel Platform, they are in the Examples directory.
3. You need to have the following in a single directory:
   • PipeTest.exe (from step 2)
   • okFrontPanel.dll (.so for Linux, .dylib for macOS)
   • pipetest.bit (from step 1)

A device is only accessible in one application at a time. Ensure the FrontPanel application is closed before running the example.

Usage: PipeTest bitfile [serial S] [repeat N] [pattern lfsr|sequential|walking1|walking0|hammer|neighbor|fixed F]
                 [throttlein T] [throttleout T] [check] [inject]
                 [blocksize B] [segmentsize S]
                 [stress] [bench] [read N] [write N]

  serial S       - Optionally specify serial S of device to test.
  bitfile        - Configuration file to download, alternatively specify \"nobit\" to skip configuration.
  repeat N       - Repeats the requested tests for N seconds (\"inf\" to run forever).
  pattern        - Set pattern to one of the supported patterns.
     lfsr        - [Default] Selects LFSR psuedorandom pattern generator.
     sequential  - Selects Counter pattern generator.
     walking1    - Selects Walking 1's pattern generator. (USB 3.0 only)
     walking0    - Selects Walking 0's pattern generator. (USB 3.0 only)
     hammer      - Selects Hammer pattern generator. (USB 3.0 only)
     neighbor    - Selects Neighbor pattern generator. (USB 3.0 only)
     fixed F     - Selects a fixed pattern defined by hex input F. (USB 3.0 only)
  throttlein     - Specifies a 32-bit hex throttle vector (writes).
  throttleout    - Specifies a 32-bit hex throttle vector (reads).
  check          - Turns on validity checks.
  inject         - Injects an error during data generation.
  blocksize B    - Sets the block size to B (for BTPipes).
  segmentsize S  - Sets the segment size to S.
  stress         - Performs a transfer stress test (validity checks on).
  bench          - Runs a preset benchmark script and prints results.
  csv S          - Also output results to a csv file named [S]
  read N         - Performs a read of N bytes and optionally checks for validity.
  write N        - Performs a write of N bytes and optionally checks for validity.

PS C:\Work\PipeTest> PipeTest.exe pipetest.bit stress
---- Opal Kelly ---- PipeTest Application v2.0 ----
FrontPanel DLL loaded. Version: 6.0.0
Found a device: XEM8320-AU25P
Device firmware version: 1.61
Device serial number: 2607000YFH
Device device ID: 56
FrontPanel support is enabled.
Read  SS:4194304     TS:67108864     Pattern:0   Duration: 0.247039 seconds -- 259.069 MB/s
Read  SS:4194304     TS:67108864     Pattern:1   Duration: 0.26955 seconds -- 237.433 MB/s
Read  SS:4194304     TS:67108864     Pattern:2   Duration: 0.256707 seconds -- 249.311 MB/s
Read  SS:4194304     TS:67108864     Pattern:3   Duration: 0.271756 seconds -- 235.505 MB/s
Read  SS:4194304     TS:67108864     Pattern:4   Duration: 0.264527 seconds -- 241.941 MB/s
Read  SS:4194304     TS:67108864     Pattern:5   Duration: 0.251537 seconds -- 254.436 MB/s
Write SS:4194304     TS:67108864     Pattern:0   Duration: 0.303436 seconds -- 210.917 MB/s
Write SS:4194304     TS:67108864     Pattern:1   Duration: 0.491625 seconds -- 130.18 MB/s
Write SS:4194304     TS:67108864     Pattern:2   Duration: 0.418927 seconds -- 152.771 MB/s
Write SS:4194304     TS:67108864     Pattern:3   Duration: 0.39803 seconds -- 160.792 MB/s
Write SS:4194304     TS:67108864     Pattern:4   Duration: 0.481198 seconds -- 133.001 MB/s
Write SS:4194304     TS:67108864     Pattern:5   Duration: 0.504347 seconds -- 126.897 MB/s
