ECM1900

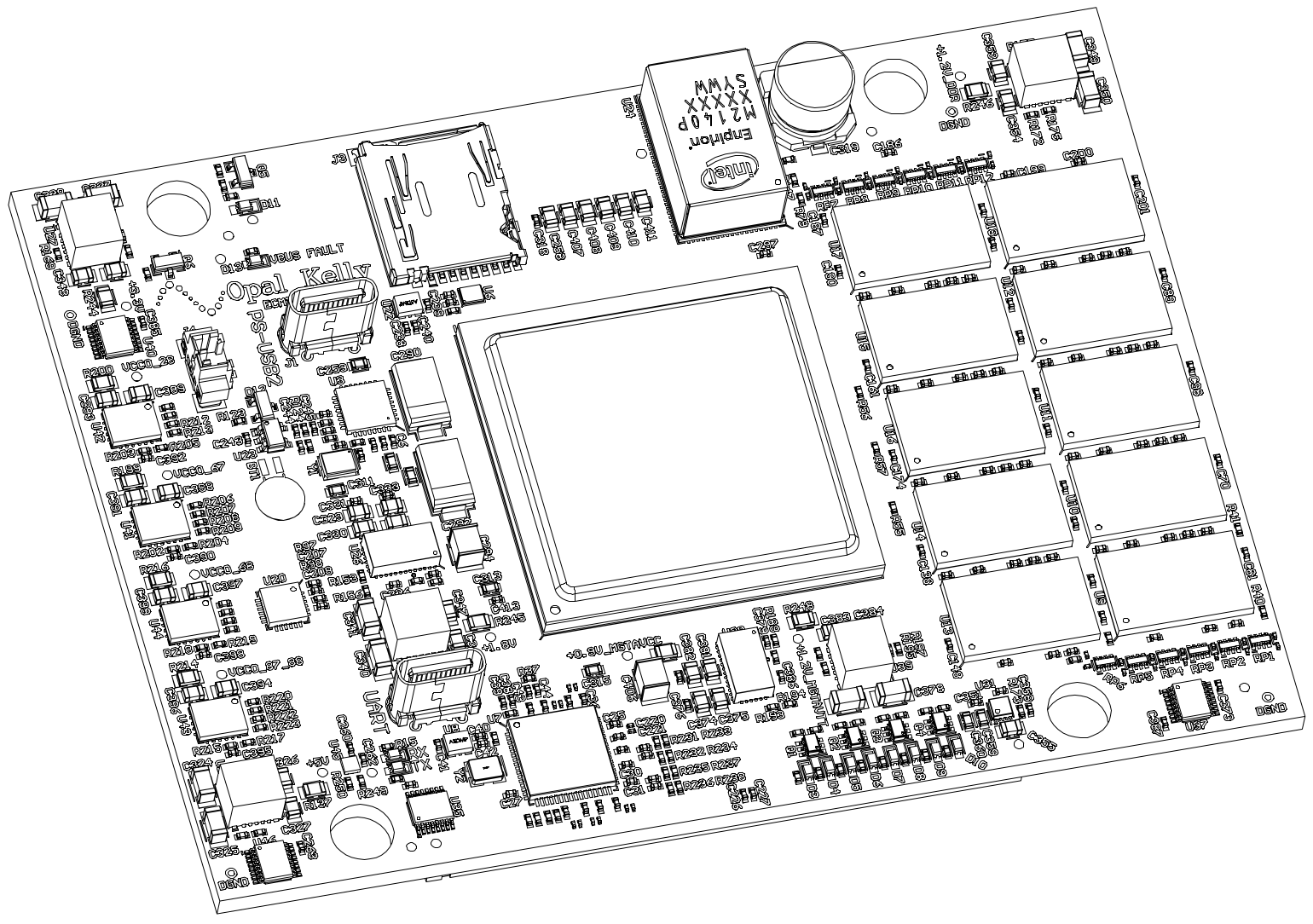

The ECM1900 is a compact FPGA module optimized for edge computing applications. It features a Xilinx Zynq UltraScale+ SoC, dual 32 Gib (512 M x 72-bit) DDR4 interfaces, high-efficiency switching power supplies, and three high-density 0.5mm expansions connectors which include full gigabit transceiver capability. A multi-channel, programmable PLL is attached to the SoC.

Documentation and Reference Materials

The following is a comprehensive list of documentation available for this device.

ECM1900 User’s ManualThis online documentation space.
ECM1900 Pins ReferenceThe interactive Pins reference for the device provides detailed pinout
information as well as automated constraint file generation. Export
functionality is provided to PDF, CSV. Constraint files are provided
for UCF, XCD (Xilinx) and QSF, SDF (Altera).
FrontPanel SDK User’s ManualThe online documentation space for the FrontPanel SDK.
FrontPanel API ReferenceOnline API reference with detailed usage for every API method.
