XEM6310

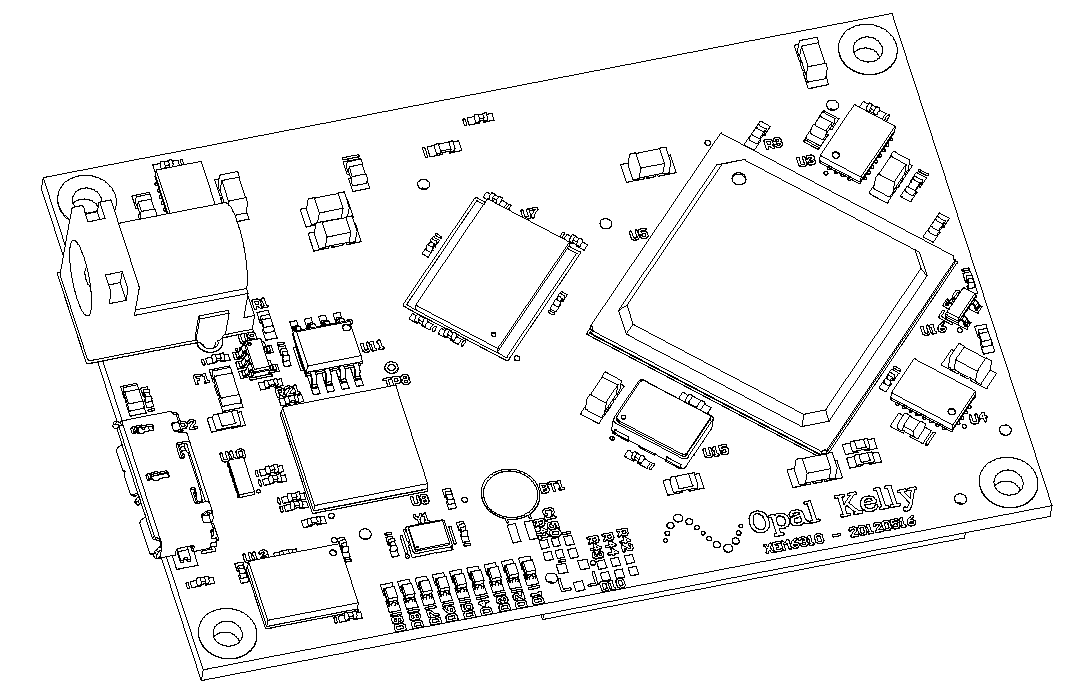

The XEM6310 is a compact USB 3.0 (SuperSpeed) FPGA integration module featuring the Xilinx Spartan-6 FPGA, 1 Gib (64 Mx16-bit) DDR2 SDRAM, two 128 Mib SPI Flash devices, high-efficiency switching power supplies, and two high-density 0.8-mm expansion connectors. The USB 3.0 SuperSpeed interface provides fast configuration downloads and PC-FPGA communication as well as easy access with our popular FrontPanel application and SDK. A low-jitter, 100 MHz crystal oscillator is attached to the FPGA.
Documentation and Reference Materials
The following is a comprehensive list of documentation available for this device.
| XEM6310 User’s Manual | This online documentation space. |
| XEM6310 Pins Reference | The interactive Pins reference for the device provides detailed pinout information as well as automated constraint file generation. Export functionality is provided to PDF, CSV. Constraint files are provided for UCF, XDC (Xilinx) and QSF, SDF (Altera). |
| FrontPanel SDK User’s Manual | The online documentation space for the FrontPanel SDK. |
| FrontPanel API Reference | Online API reference with detailed usage for every API method. |
