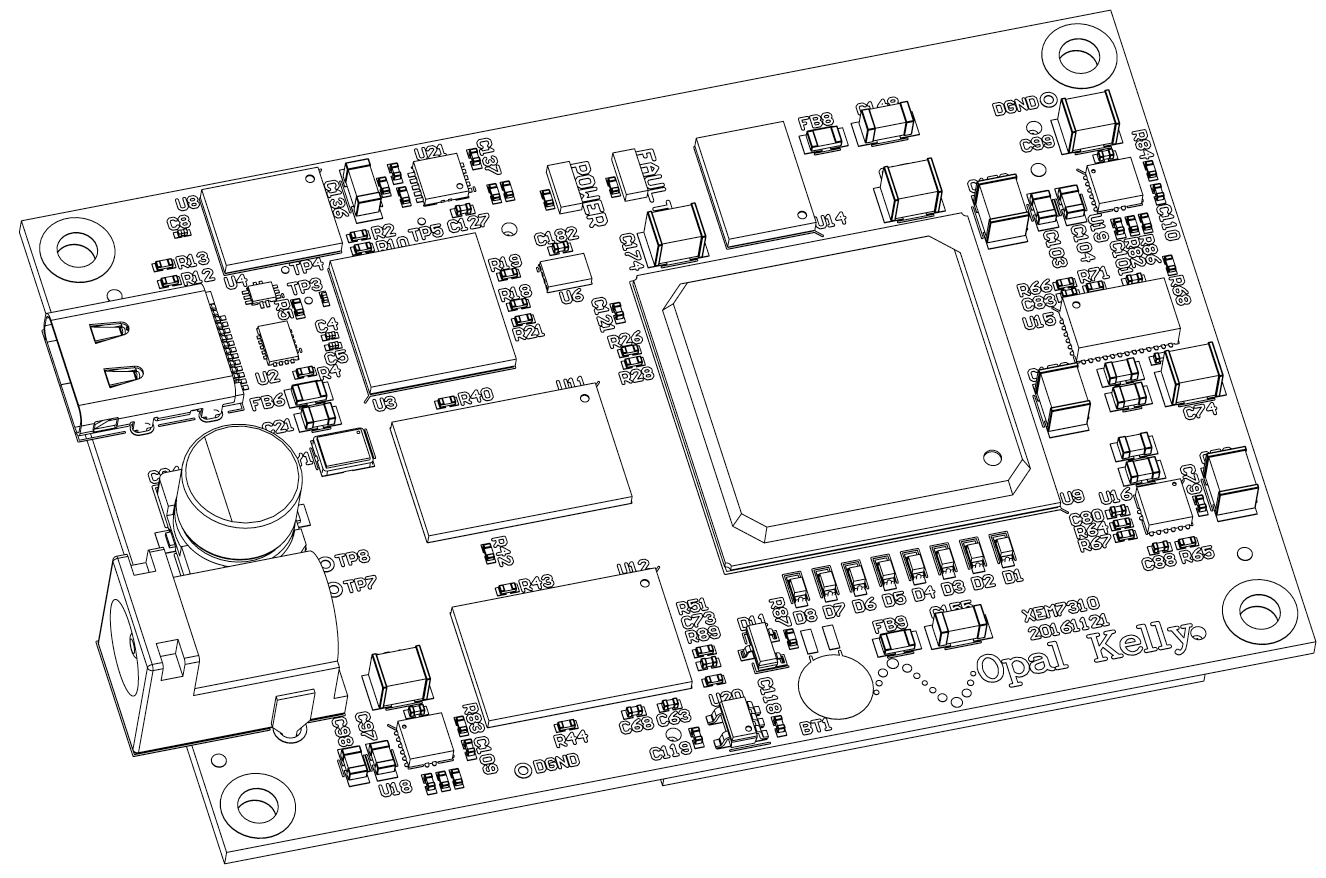

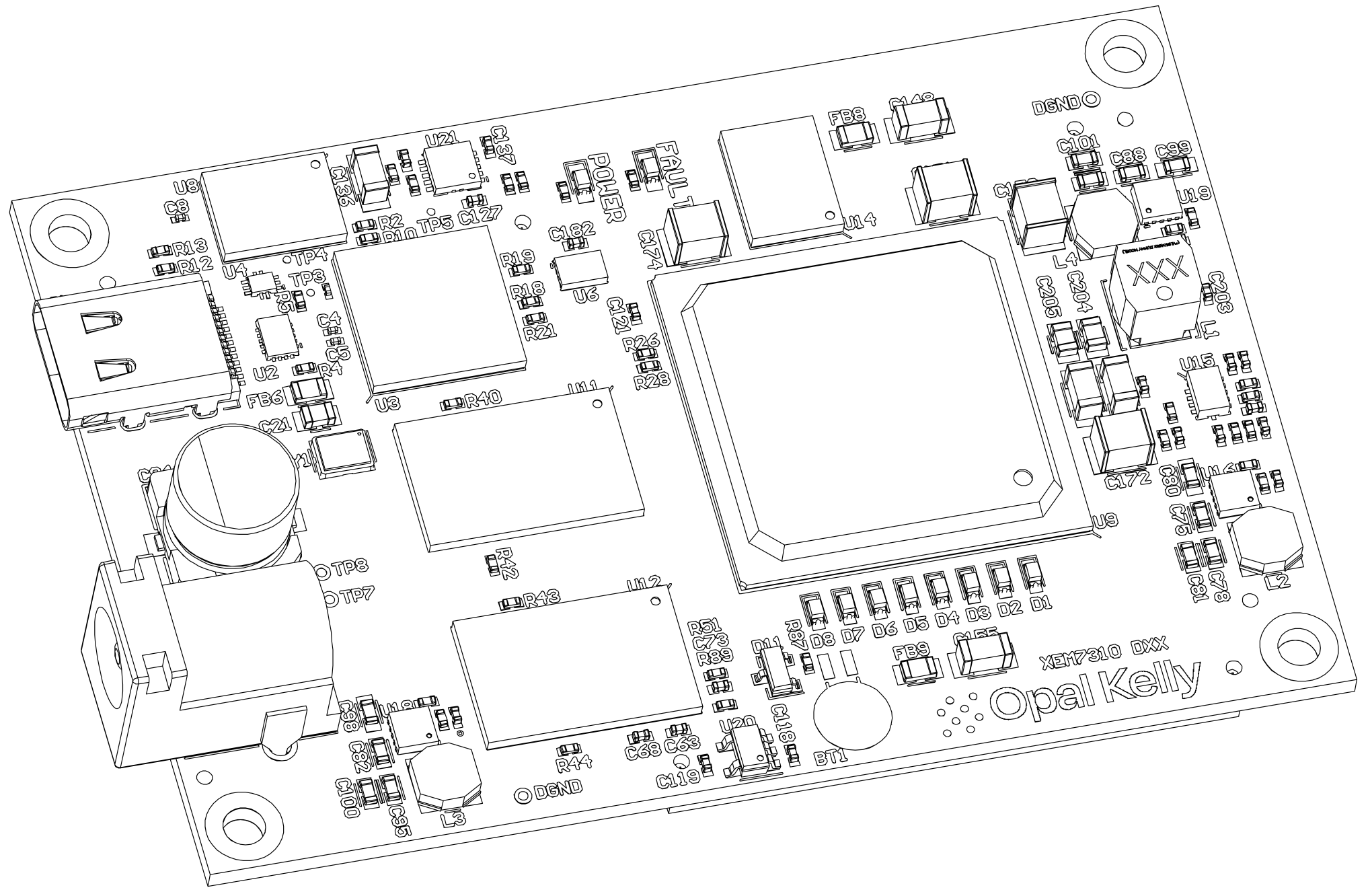

The XEM7310 is a compact USB 3.0 (SuperSpeed) FPGA integration module featuring the Xilinx Artix-7 FPGA, 8 Gib (256 M x 32-bit) DDR3 SDRAM, two 128 Mib SPI Flash devices, high-efficiency switching power supplies, and two high-density 0.8-mm expansion connectors. The USB 3.0 SuperSpeed interface provides fast configuration downloads and PC-FPGA communication as well as easy access with our popular FrontPanel application and SDK. A low-jitter 200 MHz crystal oscillator is attached to the FPGA.
Documentation and Reference Materials
The following is a comprehensive list of documentation available for this device.
|XEM7310 User’s Manual||This online documentation space.|
|XEM7310 Pins Reference||The interactive Pins reference for the device provides detailed pinout|
information as well as automated constraint file generation. Export
functionality is provided to PDF, CSV. Constraint files are provided
for UCF, XDC (Xilinx) and QSF, SDF (Altera).
|FrontPanel SDK User’s Manual||The online documentation space for the FrontPanel SDK.|
|FrontPanel API Reference||Online API reference with detailed usage for every API method.|
