XEM7010
Specifications
| Host Interface | USB 2.0 Type B FrontPanel Support |
| FPGA | XC7A50T-1FGG XC7A200T-1FBG |
| Memory | 512 MiByte DDR3, 16-bit wide data interface |
| NV Memory | 4 MiB System Flash (FPGA attached) |
| Oscillator | 200 MHz |
| FPGA I/O Voltage | See Powering the XEM7010 |
| MINIMUM | TYPICAL | MAXIMUM | UNITS | |
|---|---|---|---|---|
| DC Input | +4.5 | +5.0 | +5.5 | VDC |
| DC Input Ripple | – | – | 50 | mVp-p |
| Operating Temperature | 0 | – | +70 | ºC |
| Storage Temperature | -50 | 0 | +100 | ºC |
| Weight | 28 | grams | ||
| Oscillator Frequency | 200 | MHz | ||
| Oscillator Freq. Stability | ±50 | ppm | ||
| Oscillator Period Jitter | 2.5 | ps RMS |
PCB Footprint
The XEM7010 PCB is 75mm x 50mm with four mounting holes (M2 metric screws) spaced as shown in the figures below. These mounting holes are electrically isolated from all signals on the XEM7010. The two connectors (USB and DC power) overhang the PCB by approximately 1.3mm in order to accommodate mounting within an enclosure.
The XEM7010 has two high-density 0.8mm connectors providing access to 126 I/O including MRCC, SRCC, and XADC pins as well as two separate bank I/O voltages.

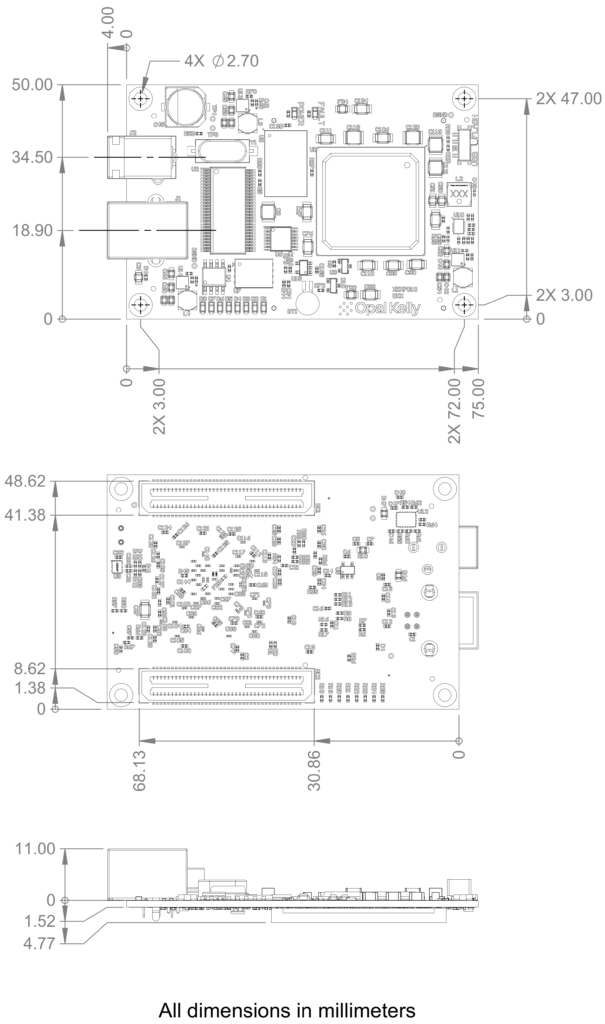

Mechanical Drawing
