XEM7010

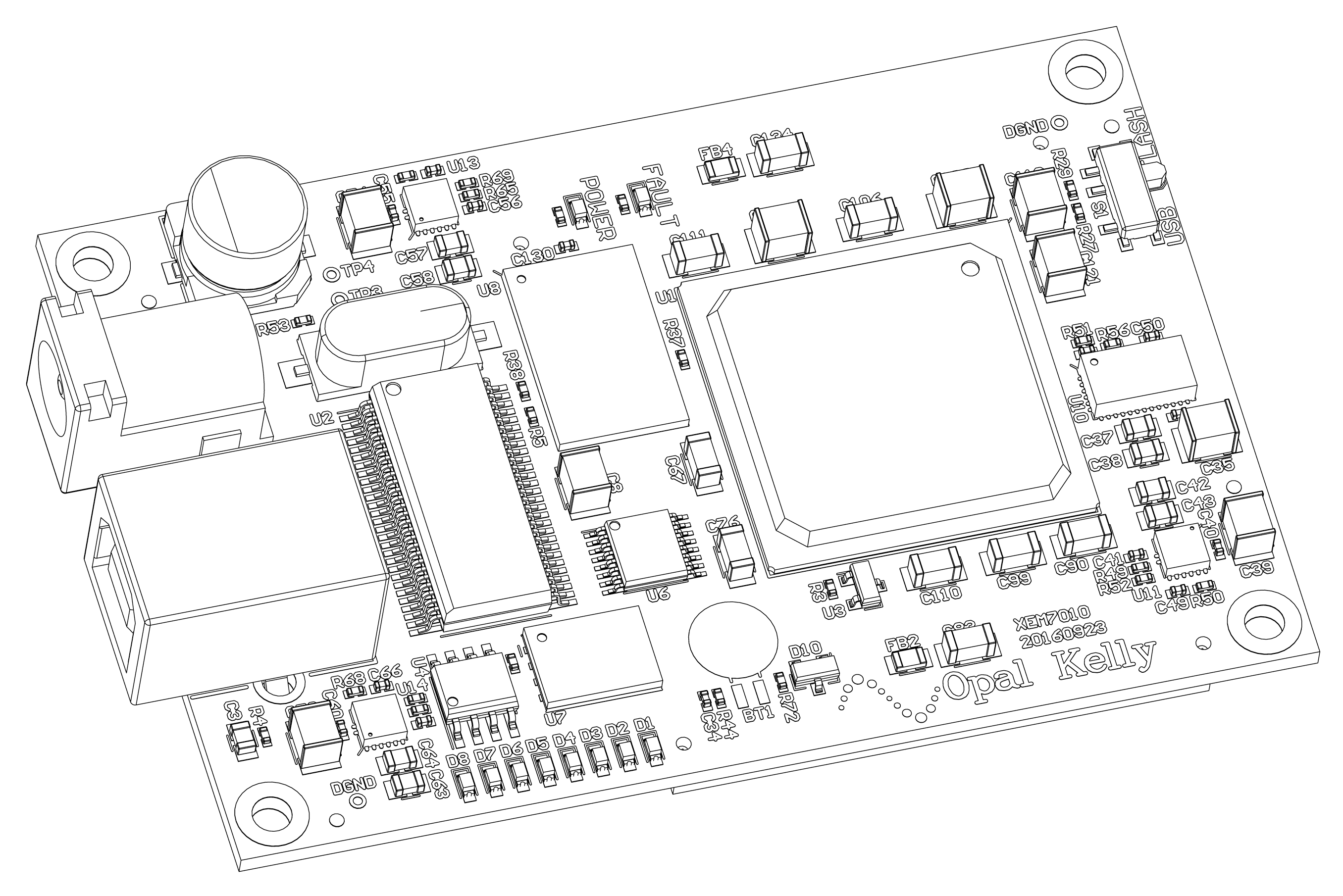

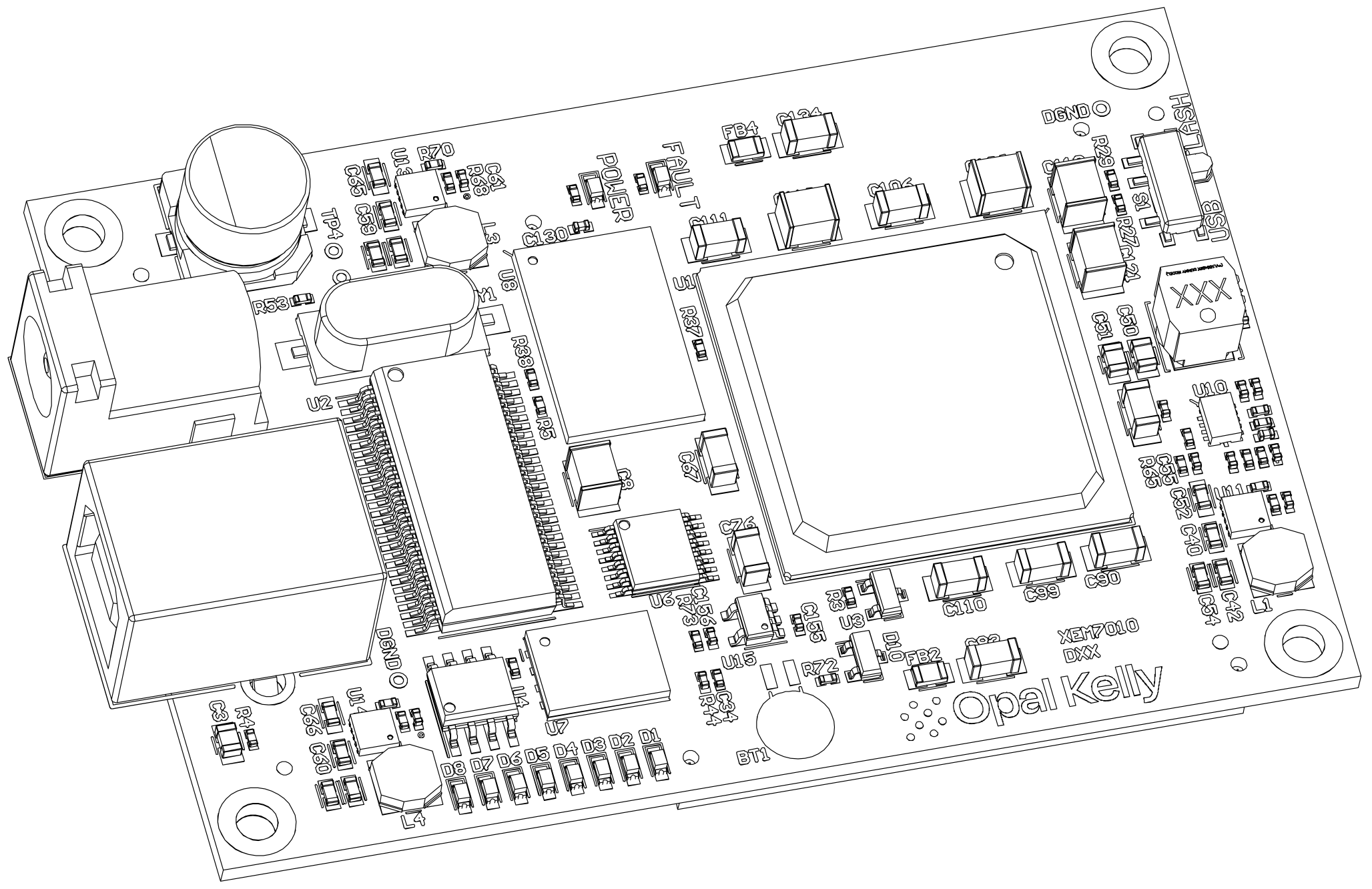

The XEM7010 is a compact USB 3.0 (SuperSpeed) FPGA integration module featuring the Xilinx Artix-7 FPGA, 4 Gib (256 M x 16-bit) DDR3 SDRAM, a 32 Mib SPI Flash device, high-efficiency switching power supplies, and two high-density 0.8mm expansion connectors. The USB 3.0 SuperSpeed interface provides fast configuration downloads and PC-FPGA communication as well as easy access with our popular FrontPanel application and SDK. A low-jitter 200 MHz crystal oscillator is attached to the FPGA.
Documentation and Reference Materials
The following is a comprehensive list of documentation available for this device.
| XEM7010 User’s Manual | This online documentation space. |
| XEM7010 Pins Reference | The interactive Pins reference for the device provides detailed pinout information as well as automated constraint file generation. Export functionality is provided to PDF, CSV. Constraint files are provided for UCF, XDC (Xilinx) and QSF, SDF (Altera). |
| FrontPanel SDK User’s Manual | The online documentation space for the FrontPanel SDK. |
| FrontPanel API Reference | Online API reference with detailed usage for every API method. |
