XEM8305

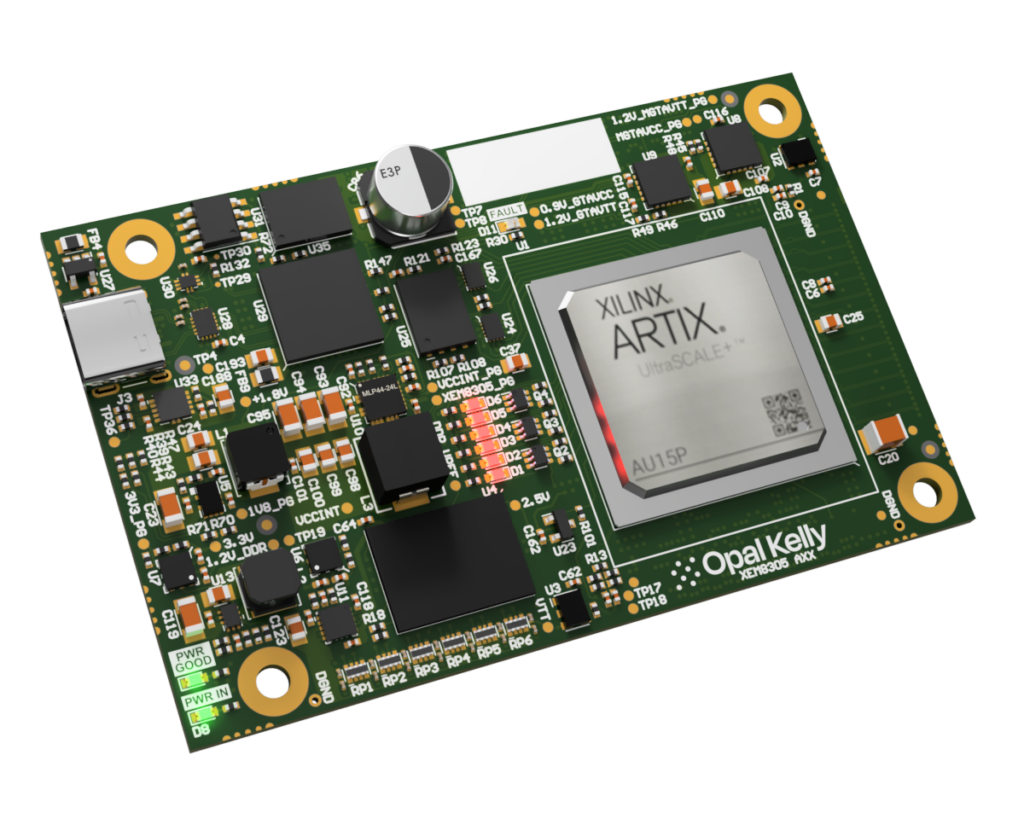

The XEM8305-AU15P is an FPGA integration module featuring the AMD Artix UltraScale+ FPGA and Opal Kelly’s FrontPanel SDK.
Documentation and Reference Materials
The following is a comprehensive list of documentation available for this device.
XEM8305 User’s Manual | This online documentation space. |
XEM8305 Pins Reference | The interactive Pins reference for the device provides detailed pinout information as well as automated constraint file generation. Export functionality is provided to PDF, CSV. Constraint files are provided in XDC format for Vivado. |
FrontPanel SDK User’s Manual | The online documentation space for the FrontPanel SDK. |
FrontPanel API Reference | Online API reference with detailed usage for every API method. |
